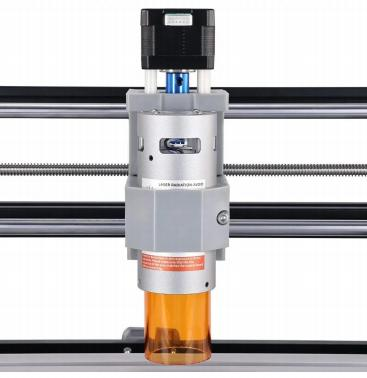

Laser Module/10W

Description

Laser Module Specifications

• Size of Laser Module: φ44 × 168 mm

• Input Voltage & Current: 12 V / 3 A

• Fixed Focus Distance: 2 mm

• Optical Power: 2.5 W

• Laser Wavelength: 450 ± 5 nm

• Minimum Focus Spot Size: 0.09 × 0.09 mm

• Engraving Accuracy: 0.03 mm

• Cutting Depth: 0.1–2 mm

• Application / Usage: Other laser engraving machines

• Interface: 3-pin (12V, GND, PWM)

• Weight: 188 g
