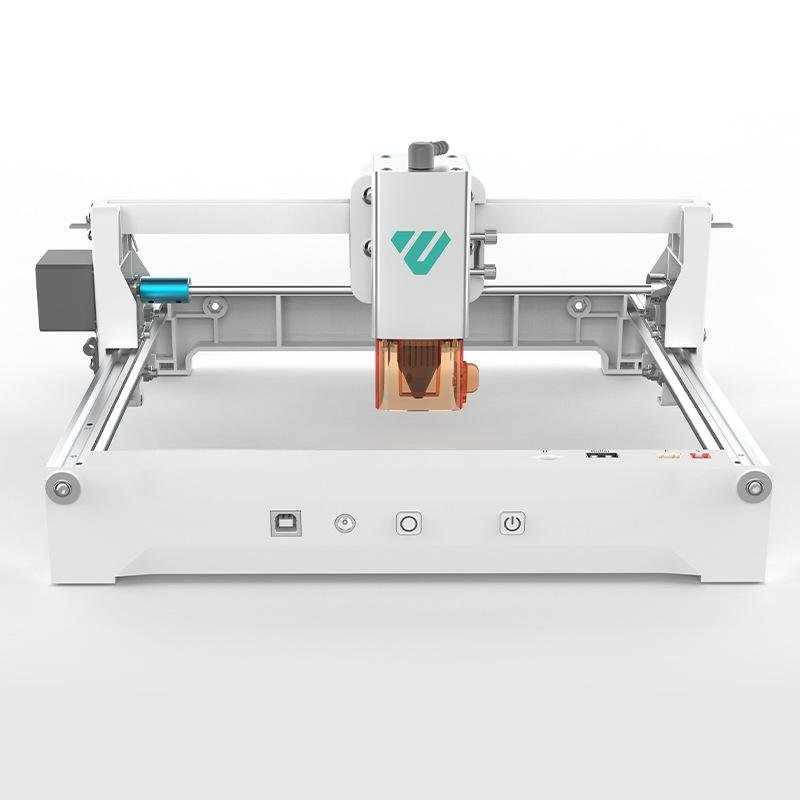

Desktop laser engraving machine 20W & 40W

Description

Technical Specifications

Laser Power Options

• Laser Power: 20 W
  Total Power Consumption: < 140 W (24 V / 6 A)

• Laser Power: 40 W
  Total Power Consumption: < 240 W (24 V / 10 A)

Structure & Design

• Body Structure Material:
  High-strength aluminum alloy with orange transparent enclosure

Engraving Performance

• Engraving Area:

  • 20 W: 400 × 400 mm

  • 40 W: 390 × 390 mm

• Engraving Precision: 0.01 mm

• Engraving Speed: Up to 40,000 mm/min

Focusing System

• Focus Method: Fixed-focus knob system

  • 20 W:
    3-step fixed focus (3.5 mm / 7 mm)

  • 40 W:
    3-step fixed focus (3 mm / 8 mm / 18 mm)

Laser & Cooling

• Laser Wavelength: 455 nm

• Cooling Method: Air cooling

Safety Design

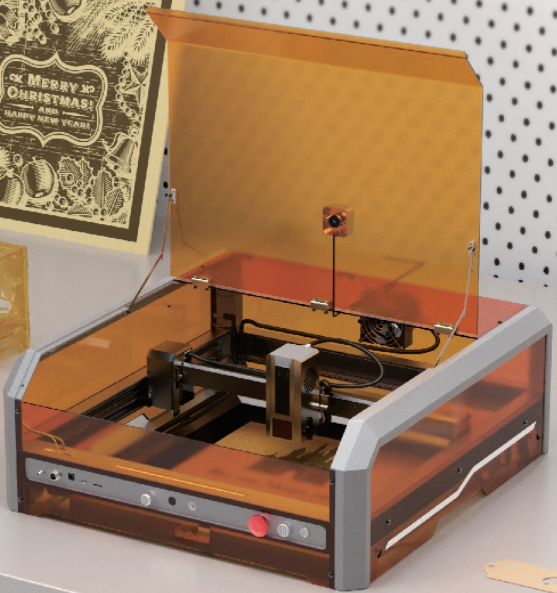

• Laser Eye Protection:
  Fully enclosed design with transparent viewing window

Physical Specifications

• Machine Weight: 13.5 kg

• Product Dimensions: 611.6 × 634 × 250 mm
